up down side discharge roof industrial single varial speed 18000m3/h 20000m3/h axial centrifugal swamp evaporative air cooler
- After-sales Service Provided:Engineers available to service machinery overseas
- airflow:18000m3/h, 2000m3/h
- power:1.1kw / 1.5KW
- cooling area:100-150m2
- fan type:axial
- noise:less than 65db
- application:supermarket,restaurant,factory,greenhouse
- function:cooling,air purifier,dust removal
- net wet:93.5kg
- air discharge:down/up/side
- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Construction works
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Type:EVAPORATIVE AIR COOLER
- Operating Voltage:220
- Mounting:Wall / Window Mount
- Certification:CE 3C EWC ISO
- Warranty:2 years
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- Key Selling Points:Long Service Life
- Airflow:20000m³/h
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:2 years
- Core Components:Motor
- Place of Origin:CN;FUJ
- Brand Name:Siboly
- Dimension(L*W*H):1100x1100x950mm
- Marketing Type:top rank
Industrial evaporative air cooler
* Function : humidification ,cooling air , fresh air .ventilation & exhaust.
Specification:
| Model | XZ31-18X-1 | XZ10-18X-1 | |
| Specification | airflow(m3/h) | 18000 | 18000 |
| power(kw) | 1.1 | 1.1 | |
| voltage | 220/380/50hz/60hz | 220380/50hz/60hz | |
| fan type | axial | axial | |
| speed | single | 3/12 | |
| cooling area(m2) | 100-150 | 100-150 | |
| casing | Anti-UV PP | Anti-UV PP | |
| overall size (mm) | 1100*1100*950 | 1100*1100*950 | |
| air outlet size(mm) | 650*650 | 650*650 | |
| noise(db) | <67 | <67 | |
| net weight | 76 | 76 | |
| water tank(L)/consumption(L/h) | 40/10-15 | 40/10-15 | |
| controller | Touch panel with remote | Touch panel with remote | |
| evaporative efficiency | 87% | 87% | |
| air discharge | down | down |
Comparisons with conventional air conditioning
Evaporative Air Cooling | Refrigerated Air Conditioning |
• Uses only 10% of the electricity compared with conventional air conditioning | • High electrical use due to refrigerant circuit compressor |
• No refrigerants | • Use environmentally damaging refrigerants |
• Supplies 100% fresh cooled air | • Use mainly recycled air |
• Low carbon dioxide footprint | • High carbon dioxide impact |
• Simple engineering | • Complex engineering |
• Low purchase cost | • High purchase cost |
• Cooling performance improves at high temperatures | • Performance reduces at high temperatures |

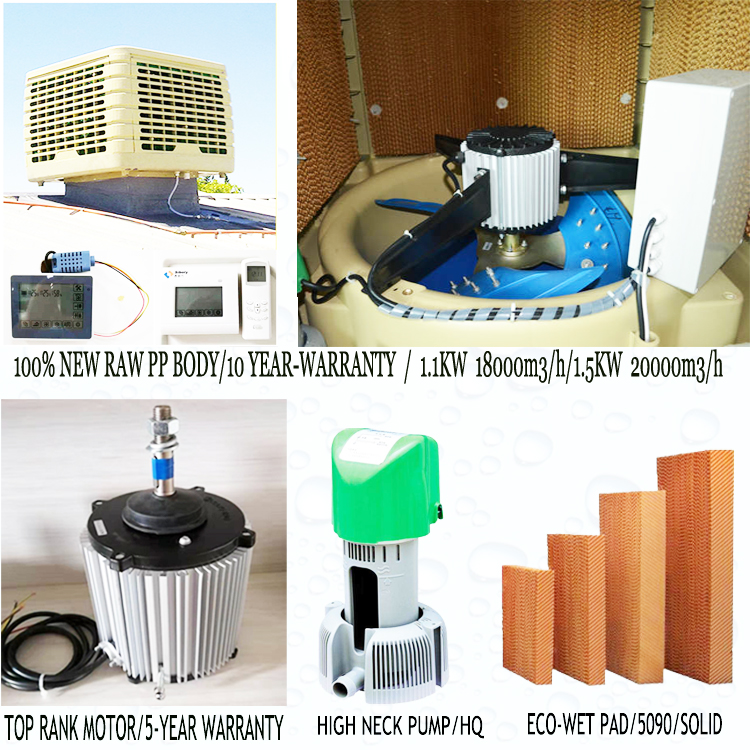

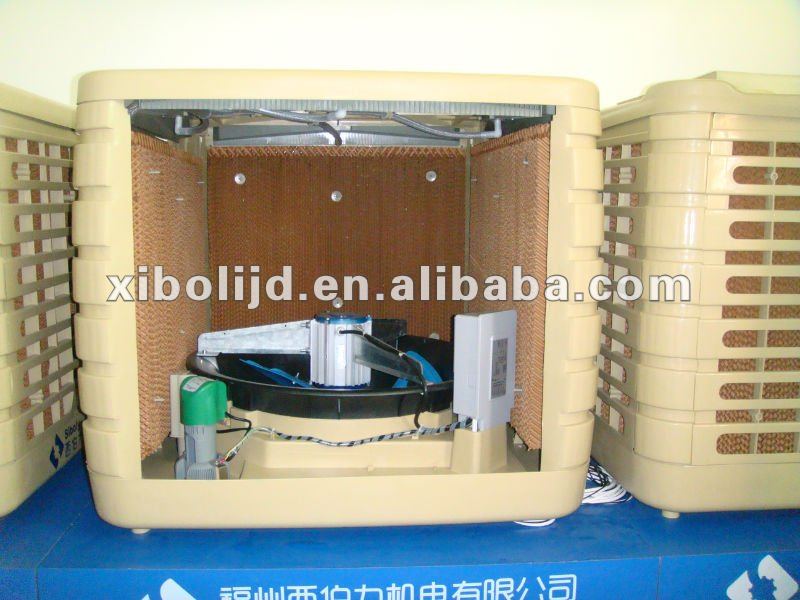

The Inside details

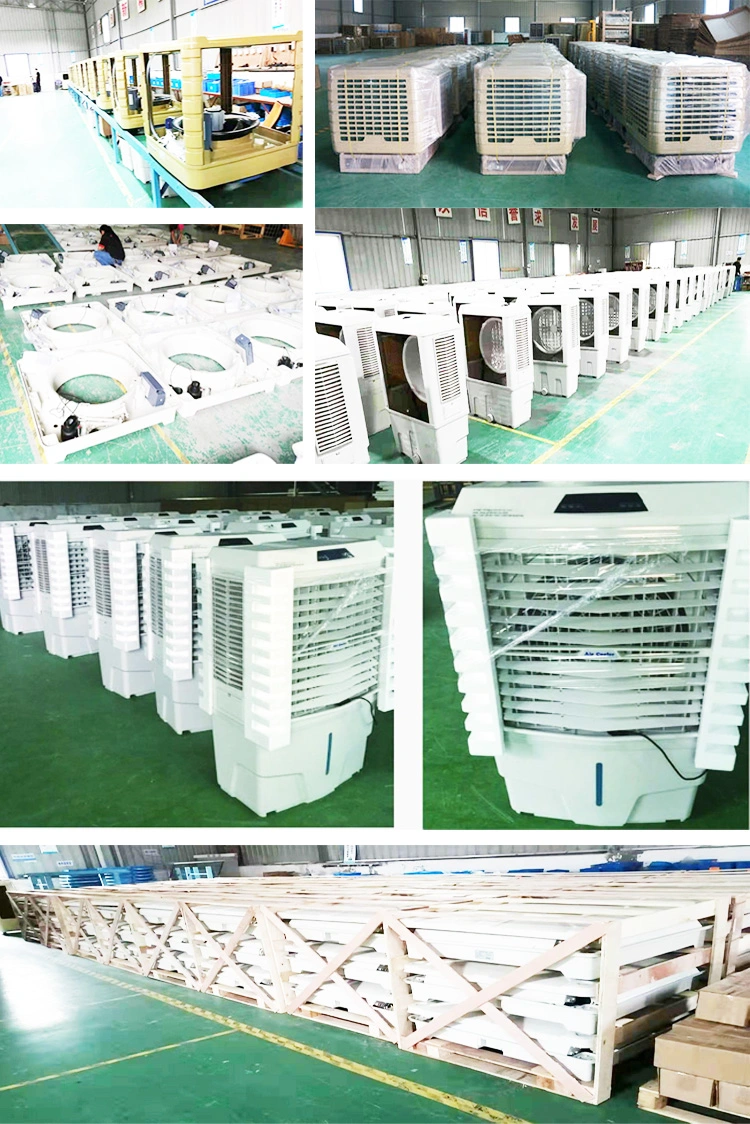

Production Line

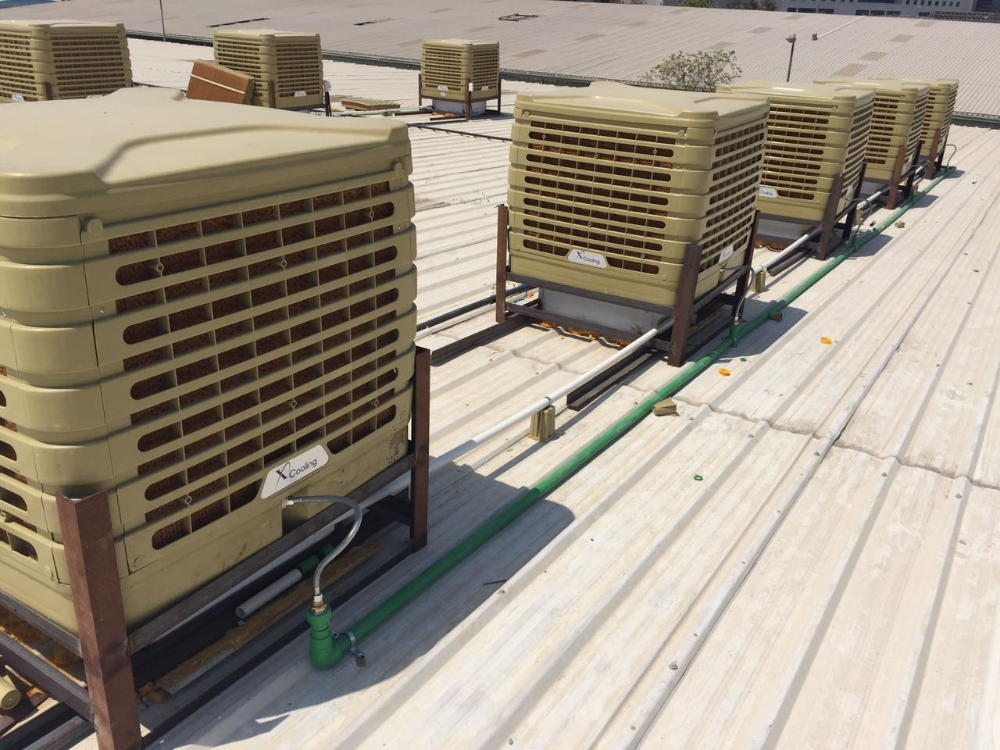

Projects
Certificate:
